Sentia™ Digital Wine Analyzer

$1,950.00$2,130.00

The Sentia™ Analyzer works with Sentia™ free SO₂ and Malic Acid Test Strips to measure either free SO₂ concentration or Malic Acid levels in post-fermentation red or white wine.

With a rich touchscreen display and long battery life, the Sentia™ system makes it easy for you to get test results in under a minute wherever and whenever you need.

SKU: N/A Categories: ,

Description

The Sentia™  Digital Wine Analyzer

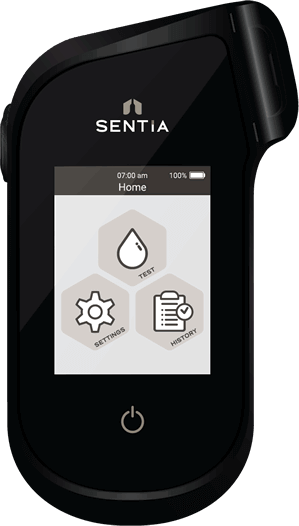

The Sentia™ Analyzer gives you the power of a laboratory in the palm of your hand. The device is portable and needs no special skills; it works with the Sentia™ Free SO2 test strips to measure free SO2 concentration and can now also test for Malic Acid levels in post-fermentation red and white wines.  If you need fast, reliable results on the go, the Sentia™ system is worth considering as an alternative to the Vinmetrica SC-100 and SC-300 or Vinmetrica SC-50.

Sentia User Manual
Sentia™ How-To Video
Sentia Free SO2 Data Sheet
A Comparison of Sentia and Vinmetrica – Free SO2

In developing both the Sentia™ free SO₂ and Malic Acid systems, Universal Biosensors created the Sentia™ Test Strips using their heritage in electrochemical technology developed in the medical device field. They then matched this to the hand-held Sentia™ Analyzer boasting a color touchscreen display and wireless connectivity.

Their goal was simple: take the pain out of free SO₂ and Malic Acid testing. Make your own testing simpler and faster. No more sending samples to the lab waiting days for the data to come back or messing with reagents and titrations. Just reliable test results you can collect yourself in under a minute.

SHIPPING INFORMATION: The Sentia™  Test strips need to be shipped via 2-Day shipping. Due to the complicated shipping for the Sentia™ items, all shipping charges will be billed separately after checkout has been completed. The invoice for shipping will be send to the email used to place the order. Payment for shipping charges must be received within 5 business days or we will cancel your order. Thank you for your understanding.


The Sentia™ Analyzer includes:

  • The Sentia™ Analyzer
  • Sentia™ User Guide
  • Power Supply/USB Cable (Comes with a range of plugs for different regions)
  • Spare Cap
  • User Guide

The Sentia™ Test Strips for testing Free SO2 includes (Product Bundle is enough for 25 tests):

  • Airtight Vial includes 25 test strips
  • Works on post-fermentation red or white wines

The Sentia™ Test Strips for testing Malic Acid (MLF) has two components (Product Bundle is enough for 25 tests):

  • Airtight Vial includes 25 test strips
  • A MLF Buffer Solution (good for 50 tests)

Things you will also need to test for Malic Acid (MLF):

  • A uL pipettor for accurate dilutions with pipette tips (500uL capability)
  • Clean test tube/mixing tube with cap (one per test) with 5mL capacity or less (1-2mL recommended)

All test strips & buffers must be shipped cold via 2-Day shipping. They need to be stored in the refrigerator upon receipt.

Additional Tests: Sentia™  is currently working on more tests including glucose, fructose and others. We should know more in 2022!


A Quick Overview – Using the Sentia™ Analyzer:

Easy Free SO2 Testing

  1. Press the power button to turn on the analyzer.
  2. On the Home screen, touch the TEST button.
  3. Select Free SO2 from the list.
  4. After selecting Sample Type (and optionally entering a sample ID), select or enter the index number of the vial.
  5. Remove a strip from the vial then securely close the vial. Always store strips in the fridge when not in use.
  6. When prompted, insert the strip gently but firmly into the Analyzer
  7. Only when prompted, apply the sample on to the end of the strip.
  8. When the analysis is complete, the test result will be presented.

Easy Malic Acid (MLF) Testing

  1. Press the power button to turn on the analyzer.
  2. Prepare samples by diluting wine with Buffer (up to 30 min before testing) and mixing thoroughly.
  3. On the Home screen, touch the TEST button.
  4. Select Malic Acid from the list.
  5. Select Sample Type (and optionally entering a sample ID), select or enter the index number of the vial.
  6. Remove a strip from the vial then securely close the vial. Always store strips in the fridge when not in use.
  7. When prompted, insert the strip gently but firmly into the Analyzer
  8. Only when prompted, apply the sample on to the end of the strip.
  9. When the analysis is complete, the test result will be presented.

**Updating your Sentia™ Analyzer: The Sentia™ analyzer will need to be connected to WIFI briefly every three months in order to automatically acquire the latest calibration data for the Sentia™ test strip batches, although we recommend you connect whenever convenient. If your analyzer is not showing the button for MLF testing you will need to perform a firmware update to access this capability. Simply connect to wifi and the instrument will do the rest. The update can take up to 30 minutes to install.**


How It Works

The Sentia™ system measures free SO2 and Malic Acid directly by a modern, miniaturized version of the  technique of voltammetry. There is no need to use a blank; the system is pre-calibrated to work directly on the sample when applied to the strip.


How-To Videos for the Sentia™  Analyzer

Using the Sentia™  Analyzer

Simple Wine Testing with Sentia™

Spend Less Time in the Lab


Specifications

Free SO2

  • Sensitivity: 3 – 50ppm of Free SO2
  • Accuracy: better than +/- 3ppm at 20ppm reading
  • Volume of wine per test: 0.01 mL (ten microliters)

Malic Acid (MLF)

  • Sensitivity: 0.05 g/L – 5 g/L of Malic Acid
  • Time per Test: 45 seconds
  • Volume of wine per test: 0.008 mL (eight microliters)

Why Choose the Sentia™ Analyzer and Free SO2 Test Strips?

The Sentia™ system is a premium technology for those needing fast, accurate free SO2 results, particularly in settings where large numbers of samples need to be measured. No more sending samples to the lab waiting days for the data to come back. Just reliable test results you can collect yourself in under a minute.

– It’s Accurate: +/-3 ppm Free SO2.  Vinmetrica itself has verified the accuracy relative to the well-established SC-100/SC-300 system.

– Quick: Less than 1 minute per test!

– Easy to use: No mystery reagents, calibrating or special training required.

– Affordable: As low as $3.50 per test!*

– Dependable:  The simplicity of the system reduces opportunities for error.

* After initial purchase of the Sentia™ Analyzer.


What about the Malic Acid Strips?

– It’s Accurate: Vinmetrica itself has verified the accuracy relative to the well-established SC-50 system.

– Quick: Less than 1 minute per test!

– Easy to use: No multiple pipetting of reagents or reagent preparation, no time wasted calibrating and no special training required.

– Affordable: As low as $6.00 per test!*

– Dependable:  The simplicity of the system reduces opportunities for error.

* After initial purchase of the Sentia™ Analyzer.


For more details:

Check out the Sentia™ User Manual

Independent Comparison: Check it out here.

Simple as that!

Additional information

Weight N/A
Dimensions N/A
Available Options

Sentia Analyzer Only, Sentia Analyzer + Free SO2 Test Strips, Sentia Analyzer + MLF Test Strips + Buffer
